Rotation-proof joint with DOMINO dowels providing maximum stability
Stops that are quick and easy to adjust, for accurate results
System accessories compatible with both DOMINO jointers
Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm

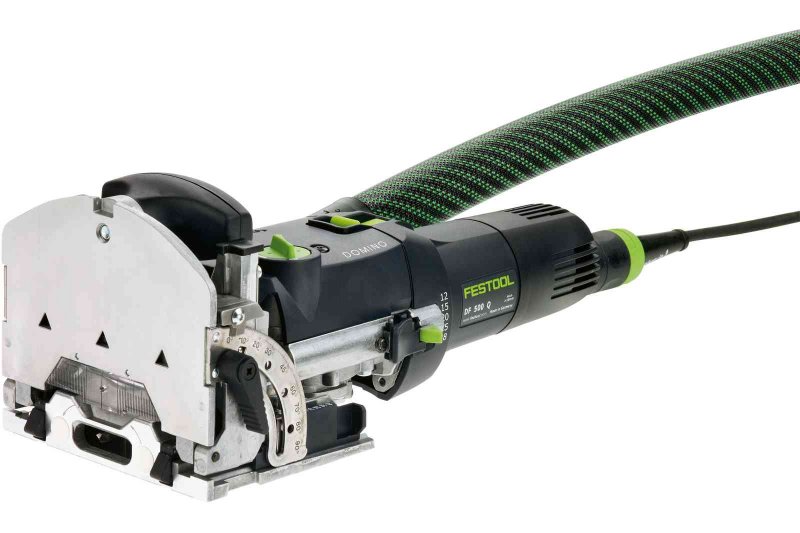

Festool 576415 Technical Data:
Power consumption: 420 W
Idle engine speed: 25 500 min⁻¹
Depth stop for routing depth: 12, 15, 20, 25, 28 mm
Max. routing depth: 28 mm
DOMINO slot cutter dia.: 4, 5, 6, 8, 10 mm
Routing height adjustment: 5 - 30 mm
Mitre routing: 0 - 90 °
Dust extraction connection diameter: 27 mm
Cable length: 4 m
Routing: Uncertainty (vibration) K: 1.5 m/s²
Routing: Uncertainty (noise) K: 3 dB
Routing: Total vibration average, Ah: 3 m/s²
Routing: Standards series EN: 60745-2-19
Routing: A-weighted sound pressure level, LpA: 84 dB(A)
Routing: A-weighted sound power level, LWA: 95 dB(A)
Drive type: Mains
Product weight without accessories: 3.5 kg
Transport weight incl. accessories: 5.9 kg
Items included
Additional stop
DOMINO cutter D5
Systainer SYS3 M 187
Open ended spanner, WAF 8
Plug it-power cable (4 m)
