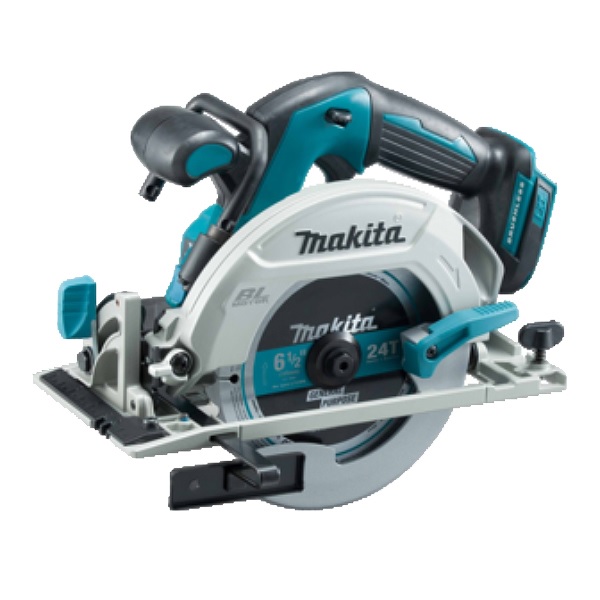

Makita DHS680Z 18v 165mm Circular Saw Body

Makita DHS680Z 18v 165mm Circular Saw Body

Makita DHS680Z is an efficient brushless and cordless circular saw for wood. Blades with 165 mm diameter; max. cutting depth of 57 mm. Ventilation air is guided through the front to keep the cut line clear. Blade is to left side of handle.
  • Model
  • DHS680Z
  • EAN
  • 0088381683197
 In stock
£189.00 (inc VAT)

The Makita DHS680Z has an automatic Speed Control: Automatically changes the cutting speed according to load condition for optimum operation

Electric brake

Soft start

Electronic current limiter for overload protection.

Tool Hanger

Twin LED job light

Battery fuel gauge

Rear dust exhaust port

Large lock off lever.

Compact and lightweight design

Ergonomic soft grip

Blower function to clear wood dust from cutting line.

Larger base than current models for more stable operation

Makita DHS680Z Specifications:

Nominal Battery Voltage: 18 V (Battery not Included)
Voltage LXT
Max. Cutting Depth at 90°: 57 mm
Max. Cutting Depth at 45°: 41 mm
Max. Cutting Depth at 50°: 37 mm
Max. Bevel Range (Left): 0 / 50 º
No load speed: 5000 min⁻¹
Sound Power Level (LWA): 105 dB(A)
Sound Pressure Level (LpA): 94 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level (3 axes): ≤ 2.5 m/s²
Vibration Uncertainty (K Factor): 1.5 m/s²
Tool weight with battery: 3.0 - 3.3 kg
Product Dimensions (L x W x H):350 x 170 x 238 mm
Brushless Motor
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
Max Output Power: 680 W
Capacity 45°: 41 mm
Blade Diameter: 165 mm
Bore Size (Arbor Diameter): 20 mm
Vacuum cleaner connection Ø in / out: 35/40 mm
