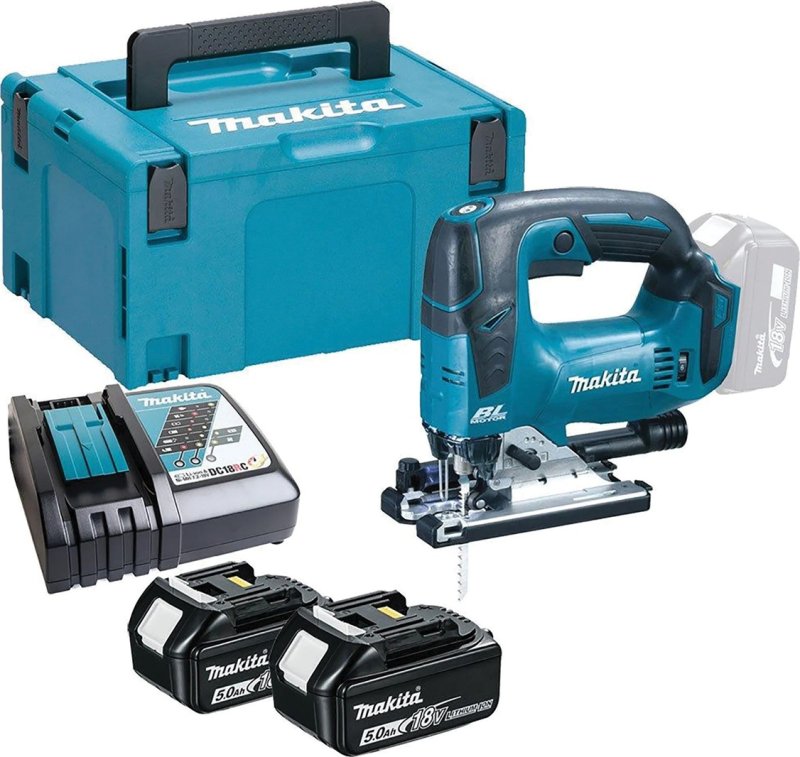

DJV182 18V Jigsaw
An efficient saw with three-stage pendulum action and tool-less blade change. Engine speed can be adjusted between 800 and 3 500 min⁻¹ from a switch to suit the material.
A stroke length of 26 mm and cutting capacity of 135 mm in wood and 10 mm in steel.
Brushless maintenance-free and long-life motor
The rubber coating on the handle ensures a firm working grip
Tool-less blade change for fast blade installation and removal
3 orbital settings
LED light illuminates the work site
Built-in dust blower clears the line of cut for greater accuracy
Battery protection circuit protects against overloading, over-discharging and over-heating
Voltage LXT
Nominal Battery Voltage: 18 V
Brushless Motor
Strokes per Minute (SPM): 800 - 3500 min⁻¹
Length of Stroke: 26 mm
Max. Cutting Capacity in Wood (90°): 135 mm
Max. Cutting Capacity in Steel (90°): 10 mm
Capacity Aluminium: 20 mm
Orbital Action
Tool weight with battery: 2,4 - 2,7 kg
Product Dimensions (L x W x H): 266 x 77 x 208 mm
Max. Bevel Range (Left): 0 - 45 º
Vacuum cleaner connection Ø in / out: 23 / 28 mm
Vibration Level, Cutting Boards: 7.0 m/s²
Vibration Uncertainty (K Factor), Cutting Boards: 1.5 m/s²
Vibration Level, Cutting Sheet Metal: 3.5 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal: 1.5 m/s²
Sound Power Level (LWA): 97 dB(A)
Sound Pressure Level (LpA): 89 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
Max. Bevel Range (Right): 0 - 45 º
Electronic brake
