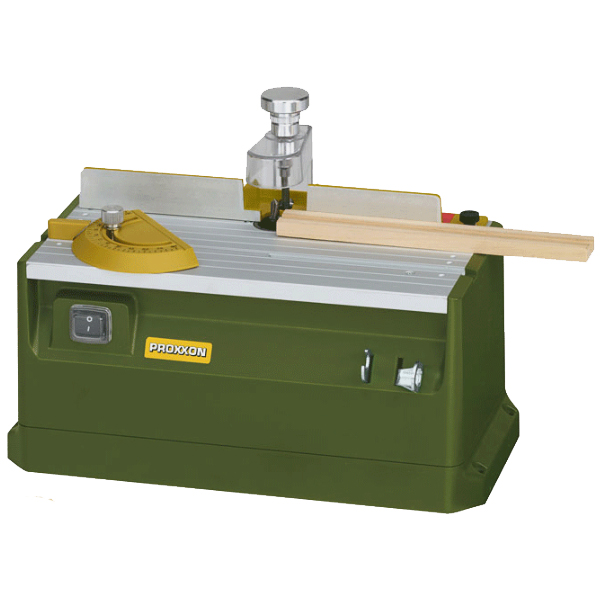

For making picture frames and cutting them out.
Also enables precise processing of edges and longitudinal cuts (in model making, e.g. for doors, flaps and housing parts).
Powerful, dust-protected motor with toothed belt drive.
Double ball bearing shaft.
Tool holder with 3-slotted precision collets (1 piece each for 2.4 - 3 and 3.2 mm is included).
Milling cutter height adjustment using a handwheel.
Stable table made of aluminum with longitudinal and angle stop as well as milling protection.
Integrated connection for dust extraction with adapter: suitable for wood, fiberboard and plastic.
Clean relief grinding for good work results and surface quality.
High stability. Shafts 3.2mm. for every household vacuum cleaner.
The scope of delivery includes 3 profile milling cutters with cutting edges made of HSS (groove cutter 3.2 mm, V-groove cutter and quarter bar cutter).
Technical data:
230 V.
100 W.
50/60 Hz.
25,000/min.
Height adjustment with scale ring that can be adjusted to 0 (1 U = 1, 1 graduation = 0.05 mm).
Milling table 300 x 150 mm.
Weight approx. 2.0 kg.
