This machine is ideal for mitre cuts: the round worktable with clamped work piece rotate, not the headstock!
The fence and 45° mitre capability ensure identical lengths for picture frames. Powerful, quiet DC motor. Power transmission takes place via a toothed belt. The tungsten tipped blade (80 x 1.6 x 10mm, 24 teeth) cuts NF metals, wood and plastic.

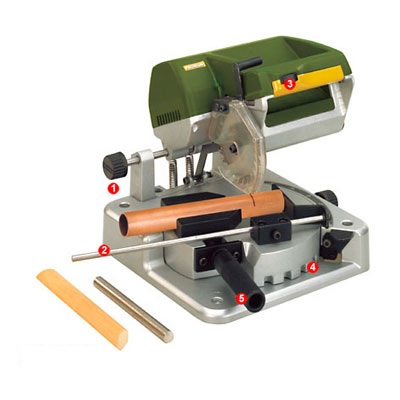

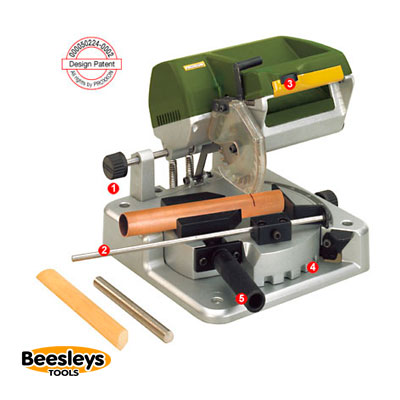

1. Laterally moving saw head to minimize the distance between the vice holding the workpiece and the kerf. For cutting without vibration and chattering!
2. Fence adjustable to 300mm.
3.Comfortable grip with built-in switch and saw head release button.
4. Round table made of die-cast aluminium, rotates 45° left and right. Positive stops in 15° increments.
5. Integrated clamping system with fixed jaws. V-slot for round workpieces. Front side slot allows thin pieces to be clamped.
Other technical data:
220 - 240V. 200W. 50/60Hz. 6,000rpm. Base with round table of highly stable die-cast aluminium with CNC-milled fittings and slides. Table 230 x 230mm. Weight 6kg.
702066 |
