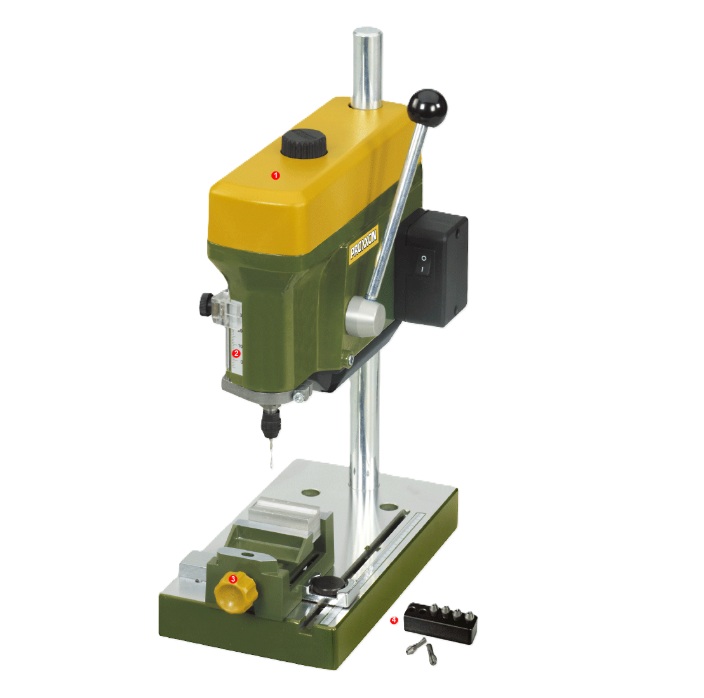

Proxxon 28128 Bench Drill TBM220

For precision work: even 0.5mm holes can be drilled. With three step pulleys for easy speed change.

Machined work top of high quality, ribbed die-cast aluminium (220 x 120mm). Adjusted fence with scale. Solid, hard-chromed steel column, 280mm high, 20 mm diameter. Super stable die-cast head with built-in, VDE approved 220 - 240 Volt, 85 W motor. Very quiet and of long life expectancy type.

1. Fully adjustable depth gauge.
2. Machine vice MS 4 made of die-cast zinc is an optional accessory.
3. 3 spindle speeds by shifting the flat belt for more than the triple the torque in the lower rotational speed range.

Power transmission by aluminium pulleys and flat belt. Three spindle speeds (triple torque at low speeds). Feed lever with adjustable depth scale.

Vice shown in image is an optional extra and not included.

Technical data:
220 - 240V. 85W. 50 - 60Hz. Spindle speeds of 1,800, 4,700 and 8,500 rpm. Extremely high rotational accuracy, 30mm feed. Throat depth (column to drill spindle) 140mm. Six triple slit precision collets for shaft sizes 1.0, 1.5, 2.0, 2.4, 3.0, 3.2mm are included. 3/8" thread. Weight 3.3kg.
