- Modular Rail Construction allows the jig to be shortened or extended to suit smaller or oversize doors. Ideal for Dutch/stable doors, loft conversions, access panels, loft hatches and understairs storage. Expansion rails available for doors larger than 2040mm (6’8”).
- Patented* Twin-Rail System provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations.
- Radius Hinge Compatibility allows fast and accurate installation of square or 10mm radius hinge profiles.
- Bradawl or Screw Attachment Options enables the jig to be secured with either bradawls for speed (included) or 3.5mm (no.6) woodscrews for maximum stability.

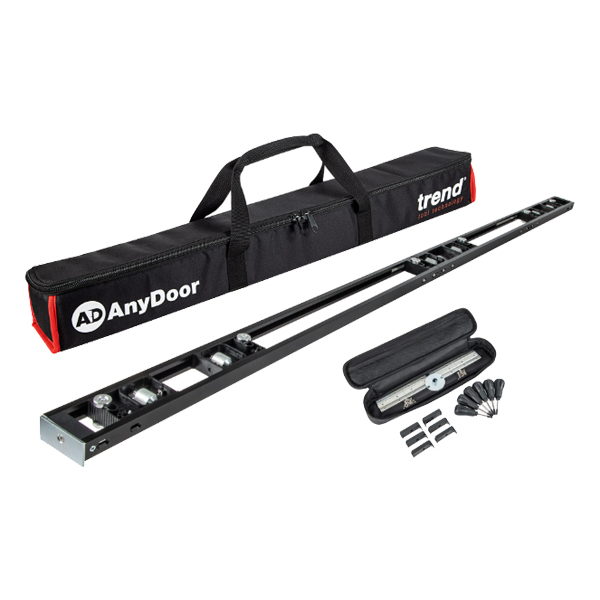

- Tough Carry Bag stores pre-built jig sections to minimise assembly time.
- Lightweight Anodized Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.
- Adjustable Edge Guides accommodate 19mm, 26mm and 30mm hinge leaf widths (preset) or any leaf width between 12.7mm and 35mm (custom).
- Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning.
- 3.0mm (1/8”) Steel End Plate ensures consistent head clearance and provides rapid door-to-frame transition.
- 25mm (1”) Rail Depth allows jig to be used against fixed door stops.
- Includes: 16.0mm Guide Bush.
- Requires: 12.0mm long-reach Router Cutter and ¼”/8mm Plunge Router.
|
