DSP600ZJ

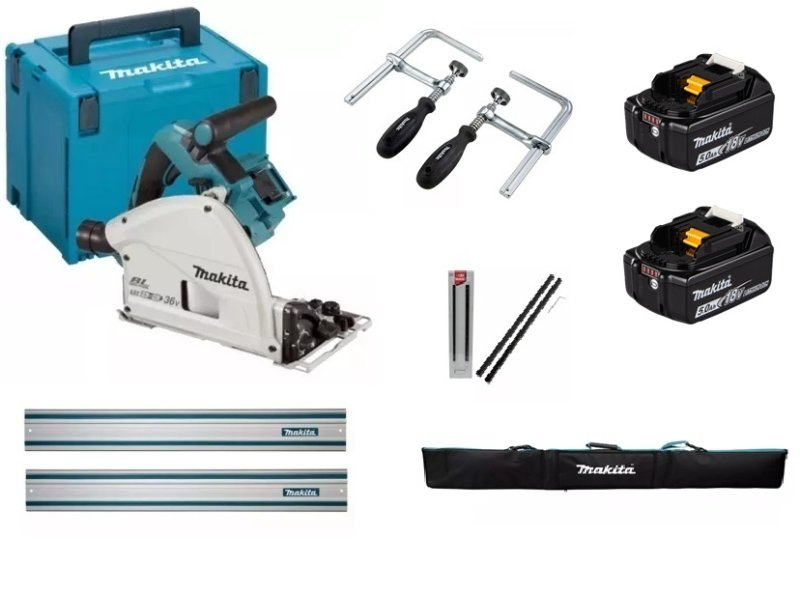

The Makita DSP600ZJ is a 165mm cordless plunge cut saw powered by two 18V Li-ion batteries. Supplied in MAKPAK case.
The Makita DSP600ZJ has a Max. Cut Depth: 56mm
56-Tooth TCT Saw Blade
5-Speed
Electronic Brake
Close to Wall Cut: 18mm
Dust Extraction Port: Outer 35mm
Automatic Torque Drive Technology
Does Not Include Battery or Charger
Makita DSP600ZJ Specifications:
Nominal Battery Voltage: 2 x 18 V
Voltage LXT
Max. Cutting Depth at 90°: 56 mm
Max. Cutting Depth at 45°: 40 mm
Max. Bevel Range (Left): - 1 / 48 º
No load speed: 2500 - 6300 min⁻¹
Sound Power Level (LWA): 103 dB(A)
Sound Pressure Level (LpA): 92 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level (3 axes): ≤ 2.5 m/s²
Vibration Uncertainty (K Factor): 1.5 m/s²
Tool weight with battery: 4.4 - 5.1 kg
Product Dimensions (L x W x H): 346 x 241 x 272 mm
Max. Cutting Depth at 48°: 38 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
Blade Diameter: 165 mm
Bore Size (Arbor Diameter): 20 mm
Vacuum cleaner connection Ø in / out: 35/43 mm
199141-8 Guide Rail x 2:
The 1.5m Guide Rail is primarily designed for use with the DSP600/SP6000 Plunge Cut Saws. Multiple rails can be joined to one another using the 198885-7 guide rail connector.
When used with a Makita Plunge Circular Saw (SP6000/DSP600) - you have a more portable option to a table saw for ripping sheet material. The Guide Rail interacts with the Plunge Saw to provide smooth, dead-on straight cuts.
FEATURES
1.5m (59") guide rail for use with Makita SP6000 / SP6000J1 / SP6000J2 Plunge Saw and the twin 18 volt cordless DSP600 Plunge Saw
Interacts with the saw base and engineered to deliver smooth, dead-on straight or bevel cutting
Alternate use with router, must use with router guide rail adaptor (194579-2) (Sold seperately.)
Multiple rails can be joined to one another using the 198885-7 guide rail joining bar
Ideal for ripping sheet material
SPECIFICATION
Length: 1.5m (59")
Weight: 3 Kg
194385-5 Pair of Clamps
The Makita Clamp Set is engineered for use with one of the Makita Guide Rails 199141-8 and (194368-5 / 194367-7 sold separately) The clamp set is engineered to hold the guide rail securely in place.
Holds guiderails or material firmly in place, mainly used with Makita DSP600/SP6000 Plunge Saws
Suitable for DSP600, SP6000, FS1400, FS2400
Compatible with guide rails199141-8 and (194368-5 / 194367-7 sold separately)
Prevents guide rails from shifting when placed on smooth materials
Clamp slides into channels located on underside of guide rail
E-05664 Guide Rail Holder
Designed to hold up to 2 guide rails, connectors and brackets.
Protects your guide rail from scratches and knocks during transportation and storage. Adjustable hook and loop straps to secure rails. Front pocket with zip for clamps.
Internal pockets to immobilise shorter guide rails
Durable but lightweight with foam lining for extra protection Strap-belt System included
198885-7 Connectors
Pack of 2 connectors for plunge saw guide rail.
BL1850B 5Ah Batteries x 2
Voltage LXT
Nominal Battery Voltage: 18 V
Battery Capacity: 5.0 Ah
Energy Capacity: 90 Wh
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
Product Dimensions (L x W x H): 113 x 75 x 62 mm
Product net weight: 0.63 kg
